Sistemi Costruttivi – Construction Systems

Nome
 Immagine PDF XLSX IFC RFA PRO
Wall_CLT60_Sughero PDF XLSX IFC 2×3 RFA PRO
Wall_CLT100_Sughero PDF XLSX IFC RFA PRO

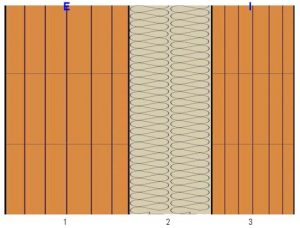

Wall_CLT60_LanaP PDF XLSX IFC RFA PRO

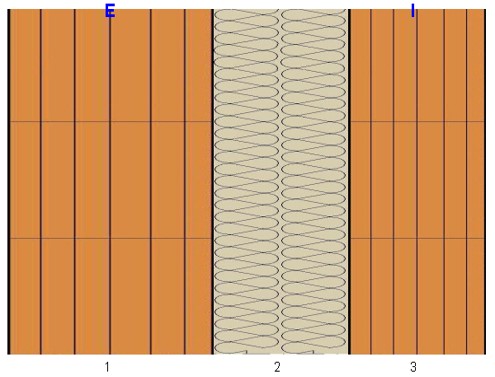

Wall_CLT100_LanaP PDF XLSX IFC RFA PRO

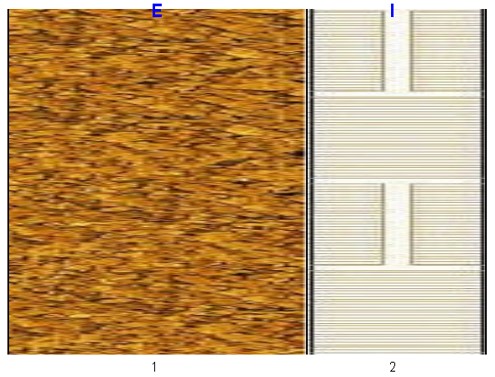

Wall_DoppieLaterizio12+8_Sugh PDF XLSX IFC RFA PRO

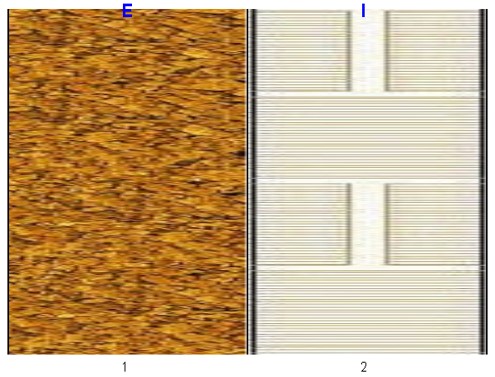

Wall_DoppieLaterizio12+8_Lana PDF XLSX IFC RFA PRO

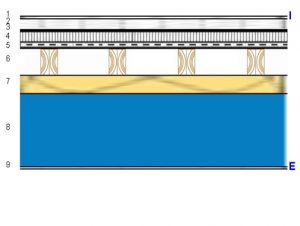

Roof_CLT_E_PC 496mm PDF XLSX IFC RFA PRO
Slab_CLT_I_359mm PDF XLSX IFC RFA PRO
Slab_CLT_E_831mm PDF XLSX IFC RFA PRO
Wall_CLT100_Sughero+LP PDF XLSX IFC RFA PRO
Wall_CLT100_LanaP+OSB PDF XLSX IFC RFA PRO

Materiali BIM – BIM Materials

PHYSICAL PROPERTIES OF MATERIALS
Nomenclature
λ Thermal conductivity ρ Density Cp Specific heat
δ Vapor Permeability (max) δ Vapor Permeability (min) μ hygroscopic resistance factor
E Young’s modulus R.d. Dynamic stiffness
αw acoustic absorption coefficient EI Rigidezza flessionale efficace
ID 1 Name of material Pino Marittimo – Spessore 60mm CLT 3 Strati – tavole di classe C16
Thermal properties λ 0,110 [W/(mK)] ρ 466,00 [kg/m³] Cp 860 * [J/(kgK)]
Hygrometric properties δ 4,5E-12 [Kg/(msPa)] δ 4,5E-12 [Kg/(msPa)] μ 44 [ – ]
Mechanical properties E     – R.d.       –
Acoustic properties αw     – EI 138667 [MNmm²]
ID 2 Name of material Lana di pecora cardata e grassello di calce Sardo (S05)
Thermal properties λ 0,207 [W/(mK)] ρ 1.228,69 [kg/m³] Cp 860* [J/(kgK)]
Hygrometric properties δ 6,66E-12 [Kg/(msPa)] δ 6,66E-12 [Kg/(msPa)] μ 30
Mechanical properties E     – R.d.     –
Acoustic properties αw     –
ID 3 Name of material Lana di pecora cardata, grassello di calce Sardo e coccio pesto (S06)
Thermal properties λ 0,146 [W/(mK)] ρ 21,98 [kg/m³] Cp 860* [J/(kgK)]
Hygrometric properties δ 6,66E-12 [Kg/(msPa)] δ 6,66E-12 [Kg/(msPa)] μ 30
Mechanical properties E     – R.d.     –
Acoustic properties αw     –
ID 4 Name of material Grassello di calco e canapa (S07)
Thermal properties λ 0,109 [W/(mK)] ρ 459,06 [kg/m³] Cp 860* [J/(kgK)]
Hygrometric properties δ 5,00E-12 [Kg/(msPa)] δ 5,00E-12 [Kg/(msPa)] μ 40
Mechanical properties E     – R.d.     –
Acoustic properties αw     –
ID 5 Name of material Grassello di calco. canapa e coccio pesto (S08)
Thermal properties λ 0,107 [W/(mK)] ρ 487,95 [kg/m³] Cp 860* [J/(kgK)]
Hygrometric properties δ     – δ     – μ INF
Mechanical properties E     – R.d.     –
Acoustic properties αw     –
ID 6 Name of material Grassello di calce sardo (S11)
Thermal properties λ 0,257 [W/(mK)] ρ     – Cp 860* [J/(kgK)]
Hygrometric properties δ 5,00E-12 [Kg/(msPa)] δ 5,00E-12 [Kg/(msPa)] μ 40
Mechanical properties E     – R.d.     –
Acoustic properties αw     –
ID 7 Name of material Grassello di calce sardo e coccio pesto (S12)
Thermal properties λ 0,287 [W/(mK)] ρ 1,88 [kg/m³] Cp 860* [J/(kgK)]
Hygrometric properties δ 5,00E-12 [Kg/(msPa)] δ 5,00E-12 [Kg/(msPa)] μ 40
Mechanical properties E     – R.d.     –
Acoustic properties αw     –
ID 8 Name of material Pasta in Coccio pesto (S14)
Thermal properties λ 0,272 [W/(mK)] ρ     – Cp 860* [J/(kgK)]
Hygrometric properties δ 5,00E-12 [Kg/(msPa)] δ 5,00E-12 [Kg/(msPa)] μ 40
Mechanical properties E     – R.d.     –
Acoustic properties αw     –
ID 9 Name of material Lana di Pecora (Sarda)
Thermal properties λ 0,036 [W/(mK)] ρ 30,08 [kg/m³] Cp 860* [J/(kgK)]
Hygrometric properties δ 4,00E-11 [Kg/(msPa)] δ 4,00E-11 [Kg/(msPa)] μ 5
Mechanical properties E     – R.d.     –
Acoustic properties αw     –
ID 10 Name of material Lana di Pecora (Sarda) + Canapa (Sarda)
Thermal properties λ 0,034 [W/(mK)] ρ 56,08 [kg/m³] Cp 860* [J/(kgK)]
Hygrometric properties δ 4,00E-11 [Kg/(msPa)] δ 4,00E-11 [Kg/(msPa)] μ 5
Mechanical properties E     – R.d.     –
Acoustic properties αw     –
ID 11 Name of material Lana di Pecora (Sarda) + Juta
Thermal properties λ 0,036 [W/(mK)] ρ 23,75 [kg/m³] Cp 860* [J/(kgK)]
Hygrometric properties δ 5,00E-11 [Kg/(msPa)] δ 5,00E-11 [Kg/(msPa)] μ 5
Mechanical properties E     – R.d.     –
Acoustic properties αw     –
ID 1 Name of material Pino Marittimo – Spessore 120mm CLT 3 Strati – tavole di classe C16
Thermal properties λ 0,110 [W/(mK)] ρ 466,00 [kg/m³] Cp 860 * [J/(kgK)]
Hygrometric properties δ 4,5E-12 [Kg/(msPa)] δ 4,5E-12 [Kg/(msPa)] μ 44 [ – ]
Mechanical properties E     – R.d.     –
Acoustic properties αw     – EI 1109333 [MNmm²]
ID 1 Name of material Pino Marittimo – Spessore 100mm CLT 5 Strati – tavole di classe C16
Thermal properties λ 0,110 [W/(mK)] ρ 466,00 [kg/m³] Cp 860 * [J/(kgK)]
Hygrometric properties δ 4,5E-12 [Kg/(msPa)] δ 4,5E-12 [Kg/(msPa)] μ 44 [ – ]
Mechanical properties E     – R.d     –
Acoustic properties αw     – EI 528000 [MNmm²]

Linee Guida Digitalizzazione Materiali e Sistemi costruttivi

Guidelines for the Digitization of Materials and Construction Systems

Linee Guida Digitalizzazione PDF
Allegato 1 – IFC Material 2×3 xls
Allegato 2 – IFC Wall 2×3 xls
Allegato 3 – IFC Slab 2×3 xls
Allegato 4 – IFC Roof 2×3 xls
Allegato 5 – IFC Door 2×3 xls
Allegato 6 – IFC Window 2×3 xls
Allegato 7 – IFC Beam 2×3 xls
Allegato 8 – IFC Column 2×3 xls
